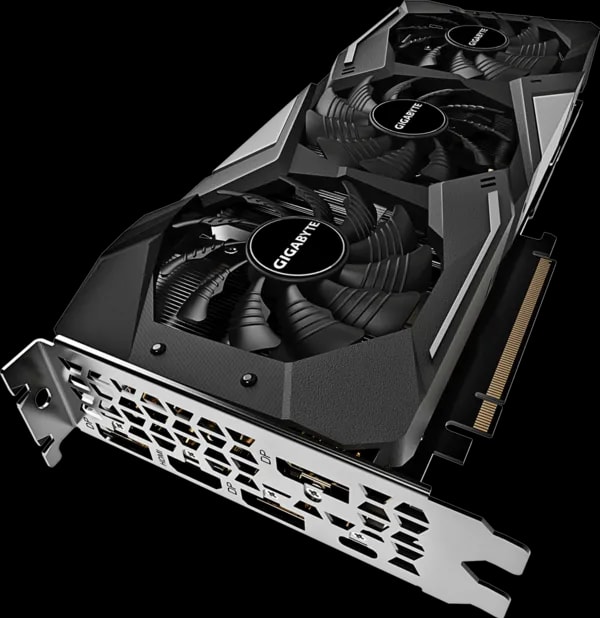

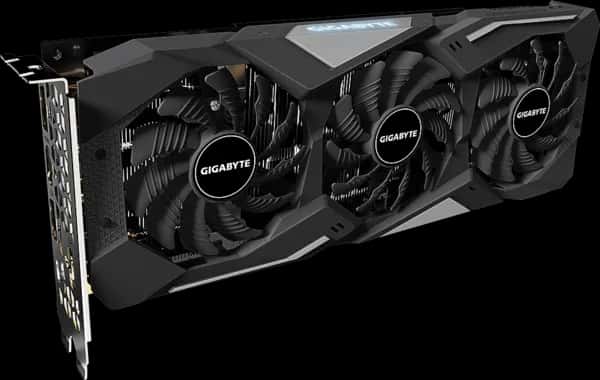

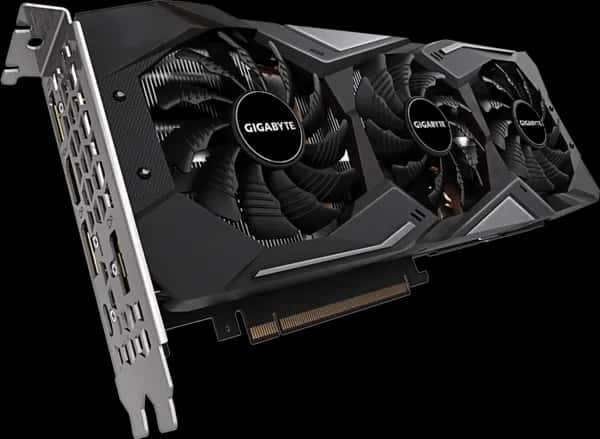

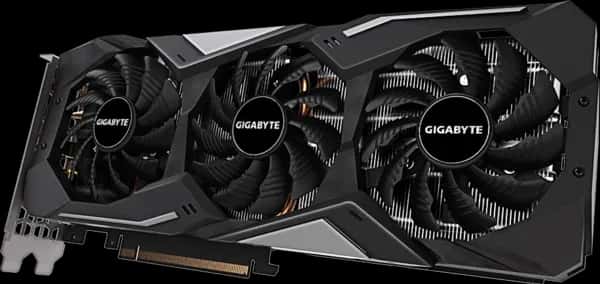

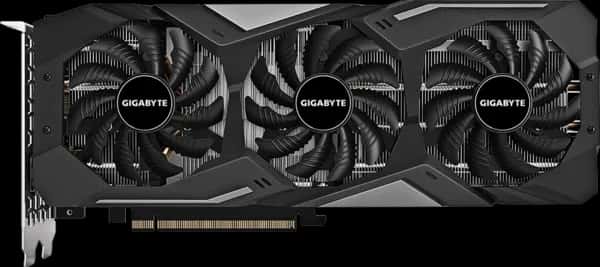

The [Gigabyte GeForce RTX™ 2070 GAMING OC 8G (rev. 1.0)](https://www.gigabyte.com/Graphics-Card/GV-N2070GAMING-OC-8GC-rev-10) is a factory-overclocked desktop graphics card designed to deliver enhanced cooling and higher clock speeds than standard reference models. [1] ## Core Hardware Specifications * * GPU Core Clock: Features a dual-profile boost clock including a 1725 MHz Gaming Mode and an aggressive 1740 MHz OC Mode, pushing performance beyond the reference clock speed of 1620 MHz. * VRAM: Equipped with 8GB of GDDR6 memory operating on a 256-bit interface, delivering up to 448 GB/s of bandwidth. * CUDA Cores: Powered by 2304 CUDA Cores via NVIDIA's 12nm Turing architecture. [1, 2, 3] * ## Thermal & Physical Design * * WINDFORCE 3X System: Utilizes three alternate-spinning fans, where the central fan spins in reverse relative to the outer ones to minimize air turbulence and maximize thermal dispersion. * Direct-Touch Heatpipes: Employs composite copper heatpipes that make direct contact with the GPU core to draw heat away immediately. * Protection Backplate: Structured with a rigid metal backplate that prevents structural bending over time. * Aesthetics: Embedded with RGB Fusion 2.0, allowing you to customize the color spectrum and lighting effects on the side logo. [2, 4] * ## Connectivity & Power Requirements * * Video Outputs: Includes 3x DisplayPort 1.4, 1x HDMI 2.0b, and 1x USB Type-C VirtualLink port intended for VR headsets or fast data transfers. * Power Inputs: Draws power via one 8-pin and one 6-pin PCIe power connector. * Recommended PSU: A high-quality 550W or greater power supply unit is recommended to handle peak power loads reliably. * What can I help you find for your RTX 2070 GAMING OC (rev. 1.0)? Get the latest official NVIDIA drivers or software download linksTroubleshoot a fan revving or heating issueCheck if it will physically fit into your PC case [1] [https://www.gigabyte.com](https://www.gigabyte.com/la/Graphics-Card/GV-N2070GAMING-OC-8GC-rev-10/sp) [2] [https://www.gigabyte.com](https://www.gigabyte.com/Graphics-Card/GV-N2070GAMING-OC-8GC-rev-10) [3] [https://www.techpowerup.com](https://www.techpowerup.com/gpu-specs/geforce-rtx-2070.c3252) [4] [https://www.youtube.com](https://www.youtube.com/watch?v=wg1cEbi-cjU&t=35)
